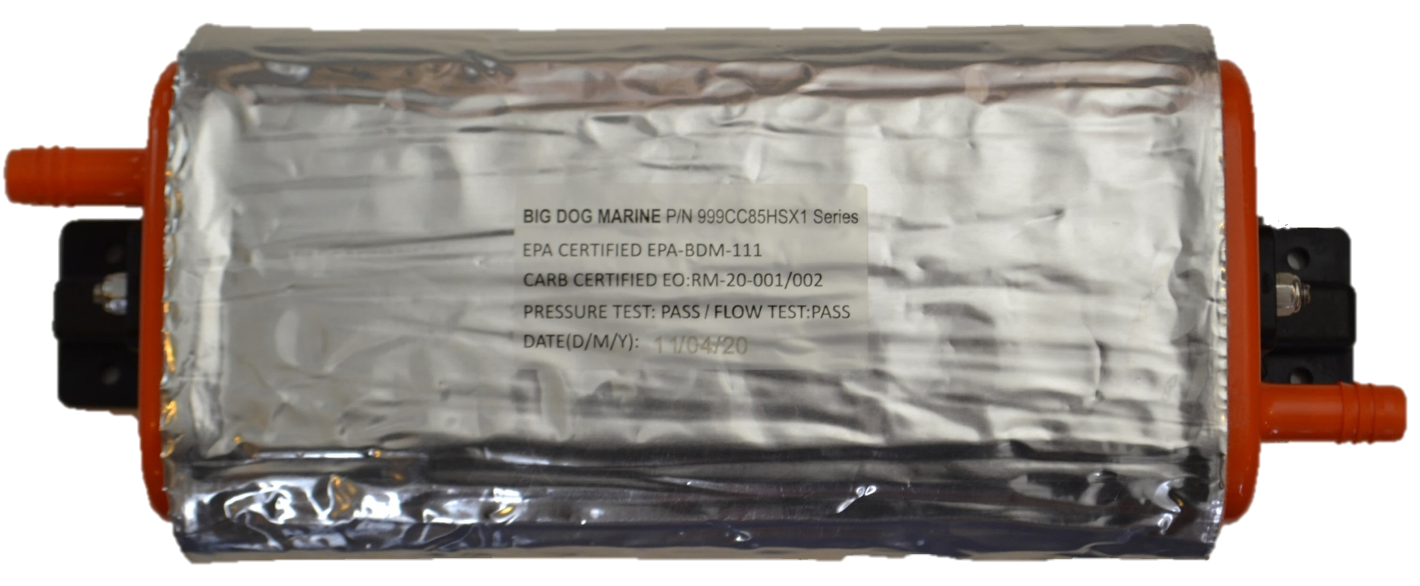

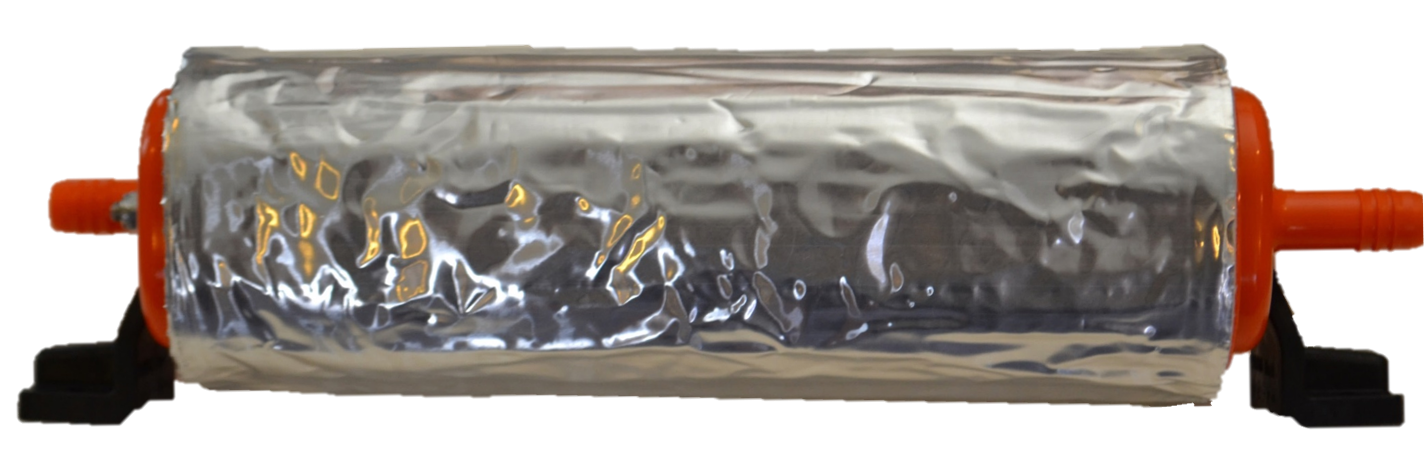

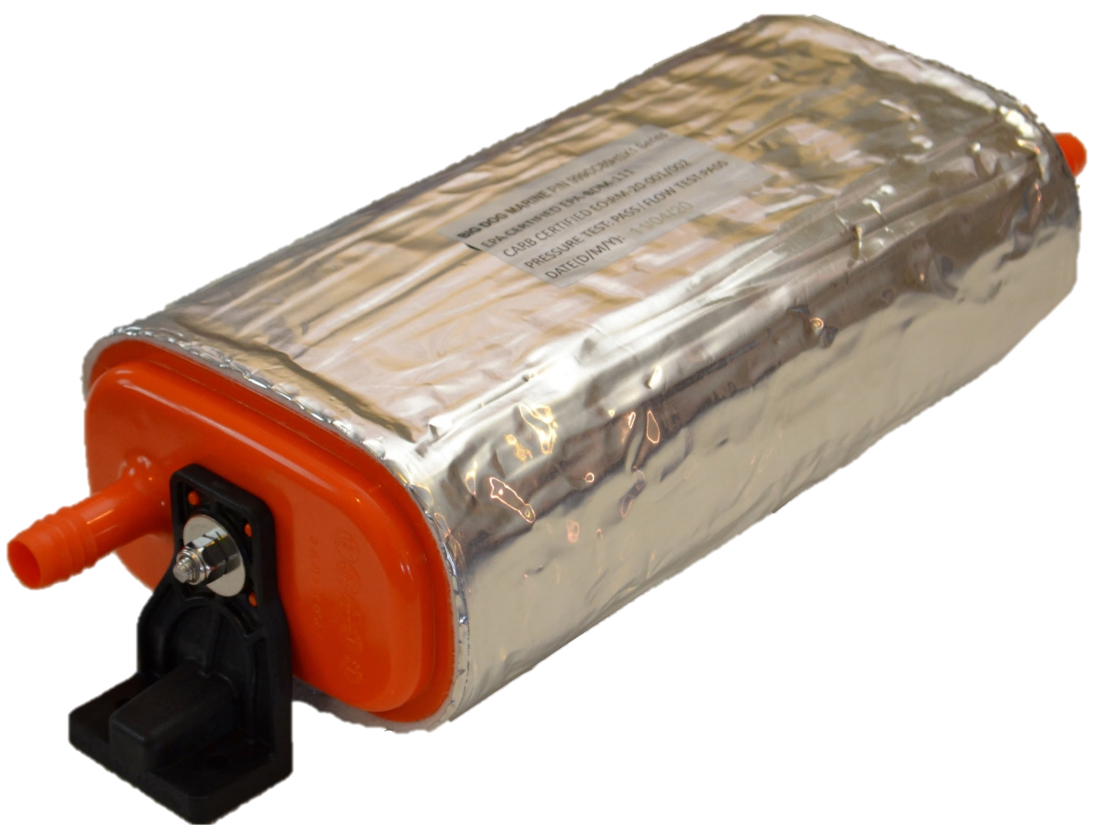

Large Carbon Canister - 5/8 outlet, horizontal asm, w/ heat shield
| Part Name | Part Number | Carbon Volume | Fuel Tank Capacity (trailerable boats) |
Fuel Tank Capacity (non-trailerable boats) | Barb Size #1 #2 |
System Interface | Mounting Orientation |
Length Inches | Width Inches | Height Inches | Single Pack QTY 1 | Standard Pack QTY 6 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Large Carbon Canister | 999CC85HSH1 | 1600cc | max 275 gal | max 550 gal | 5/8" | 5/8" | Venting/Refueling | Horizontal | 14in | 5.38in | 3.88in | $-- | $-- |
- The 999CC85HSH1 Canister is for use in trailerable boats with fuel tanks up to 275gal in size (550gal for non-trailerable).
- The vent ports are designed for use with standard 5/8” marine vent hose and 1/2" stainless steel hose clamps.
- Fully assembled with brackets in Horizontal orientation. (Mounting hardware not provided)
- EPA and CARB certified
- 2 year warranty
- 100% leak tested before shipment
- 100% flow tested before shipment
- Rated for use in engine compartment
WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
