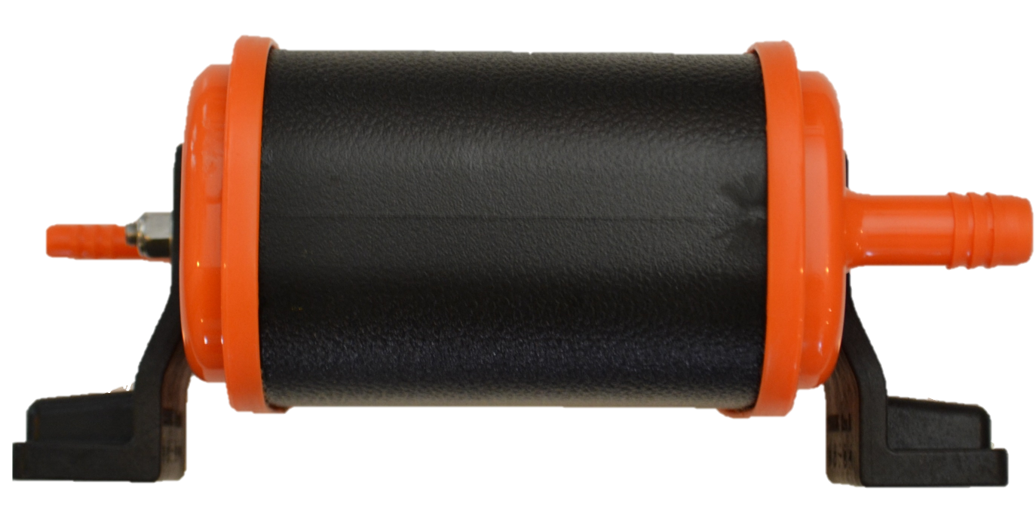

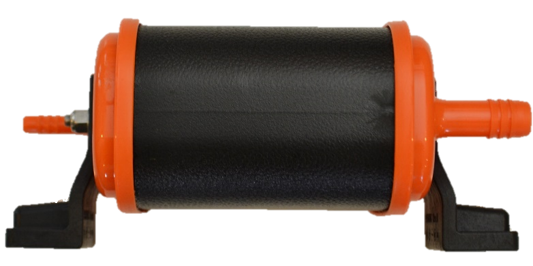

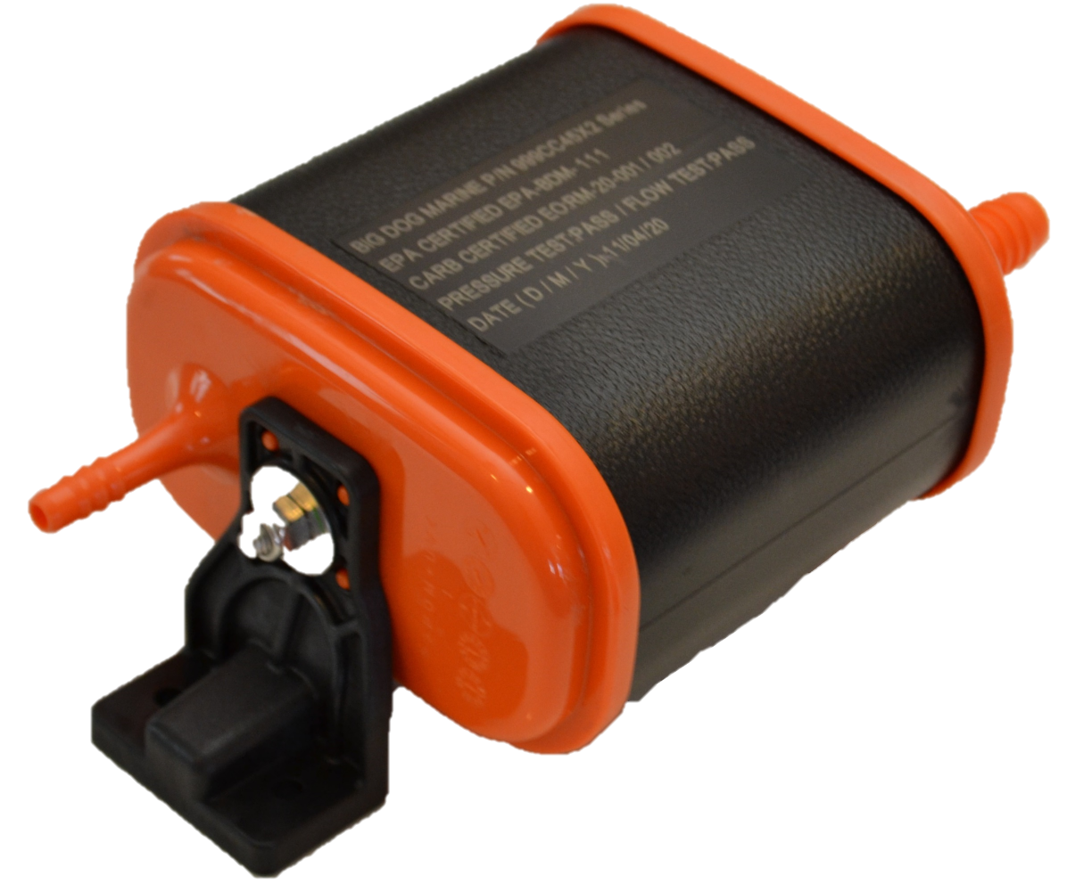

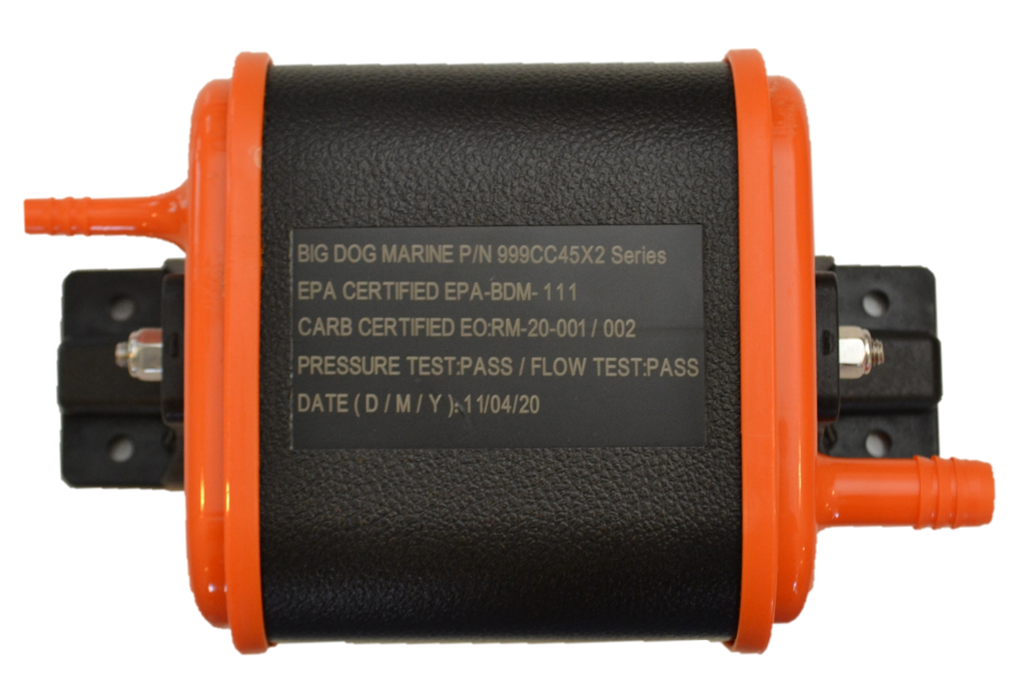

Small Carbon Canister - 5/16 outlet, horizontal asm
| Part Name | Part Number | Carbon Volume | Fuel Tank Capacity (trailerable boats) |
Fuel Tank Capacity (non-trailerable boats) | Barb Size #1 #2 |
System Interface | Mounting Orientation |
Length Inches | Width Inches | Height Inches | Single Pack QTY 1 | Standard Pack QTY 6 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Small Carbon Canister | 999CC45H2 | 500cc | max 80 gal | max 160 gal | 5/8" | 5/16" | Venting | Horizontal | 8.25in | 5in | 3.63in | $-- | $-- |
- The 999CC45H2 Canister is for use in trailerable boats with fuel tanks up to 80gal in size (160gal for non-trailerable).
- The vent ports are designed for use with one 5/8" and one 5/16” marine vent hose and stainless steel hose clamps.
- Not rated for use in vent lines under flow during refueling (see 5/8” outlet product line)
- Fully assembled with brackets in Horizontal orientation. (Mounting hardware not provided)
- EPA and CARB certified
- 2 year warranty
- 100% leak tested before shipment
- 100% flow tested before shipment
- Not rated for use in engine compartment (see heat shield product line)
